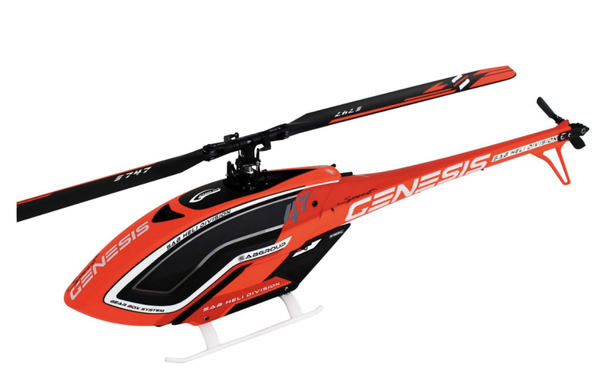

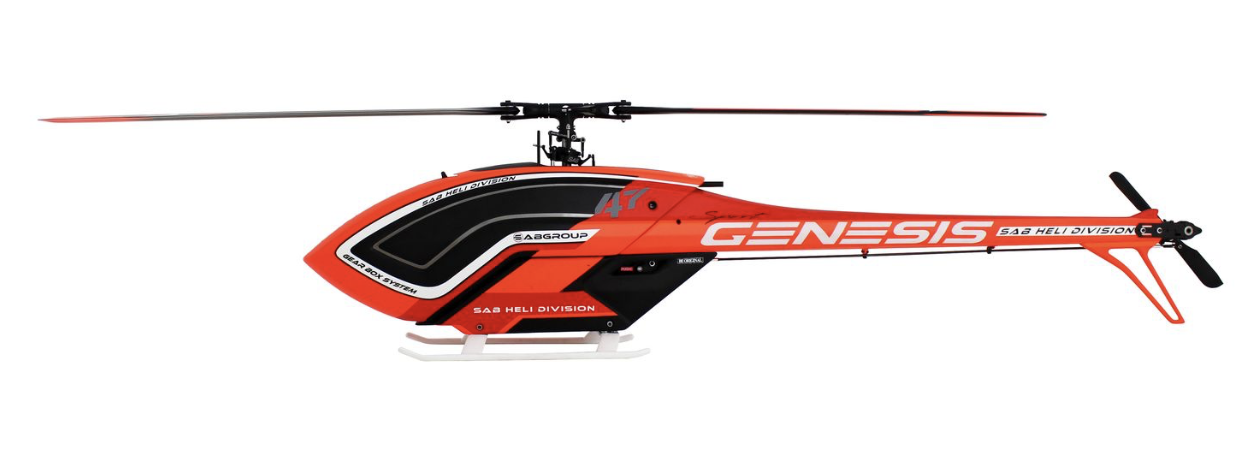

SG766 - Goblin Genesis Sport

1 499,00 €

Quantité

Référence de l'article: SG766

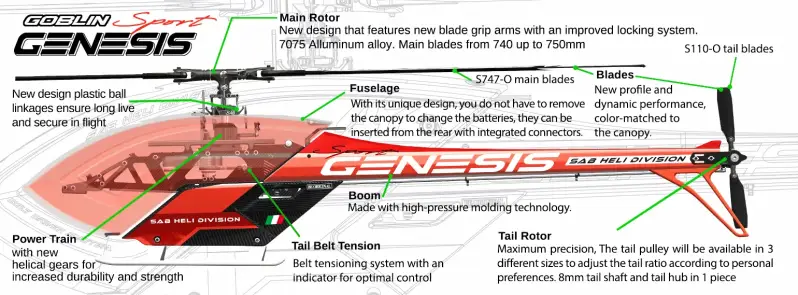

KIT Includes:

• 21T motor pulley (other pulley sizes available).

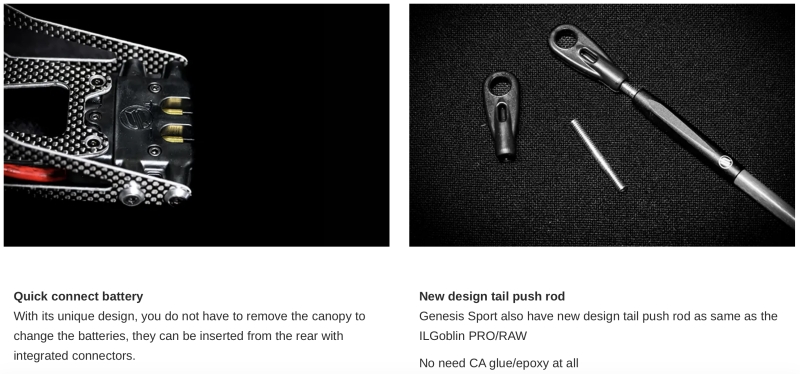

• 2 battery trays with integrated connectors.

• S747 Orange (747 mm main blades)

• S110 Orange (110 mm tail blades)

AIRFRAME weight: 2584 gr (no blades, no battery, no electronics)

Main rotor diameter: 1670 mm (with 747 mm main blades)

Main blade length: 690 to 760mm

Tail rotor diameter: 292 mm (with 110 mm tail blades)

Tail blade length: 110 to 115 mm

Cyclic Servos: Standard size 40mm

Tail Servo: Standard size 40mm

Main Rotor Ratio: 11.8 to 8.8 (21T included: 10.1:1).

Tail Rotor Ratio: 5.1 - 4.9:1 (26T includes 4.9:1)

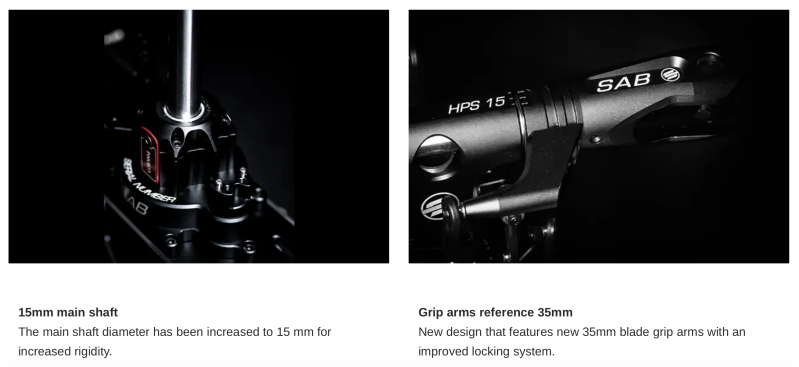

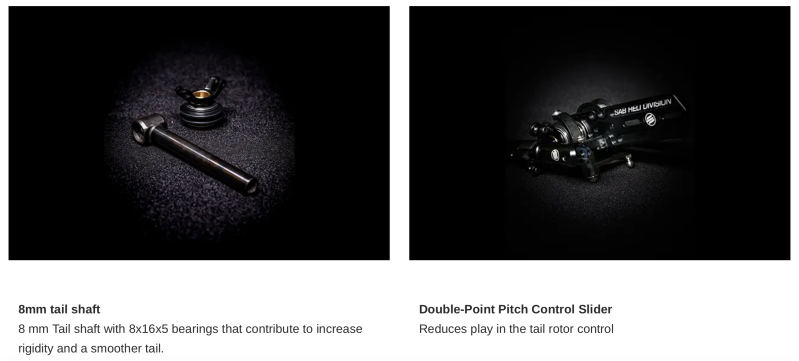

Main shaft: 15 mm, Tail shaft: 8 mm

Molded carbon tail boom

Typical motor: 12S, 480/560 KV

Battery room: 50x60x300 mm
