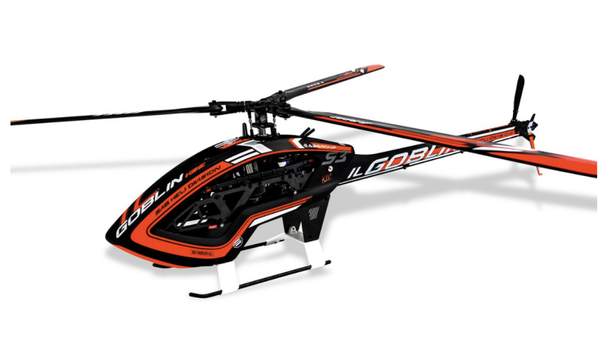

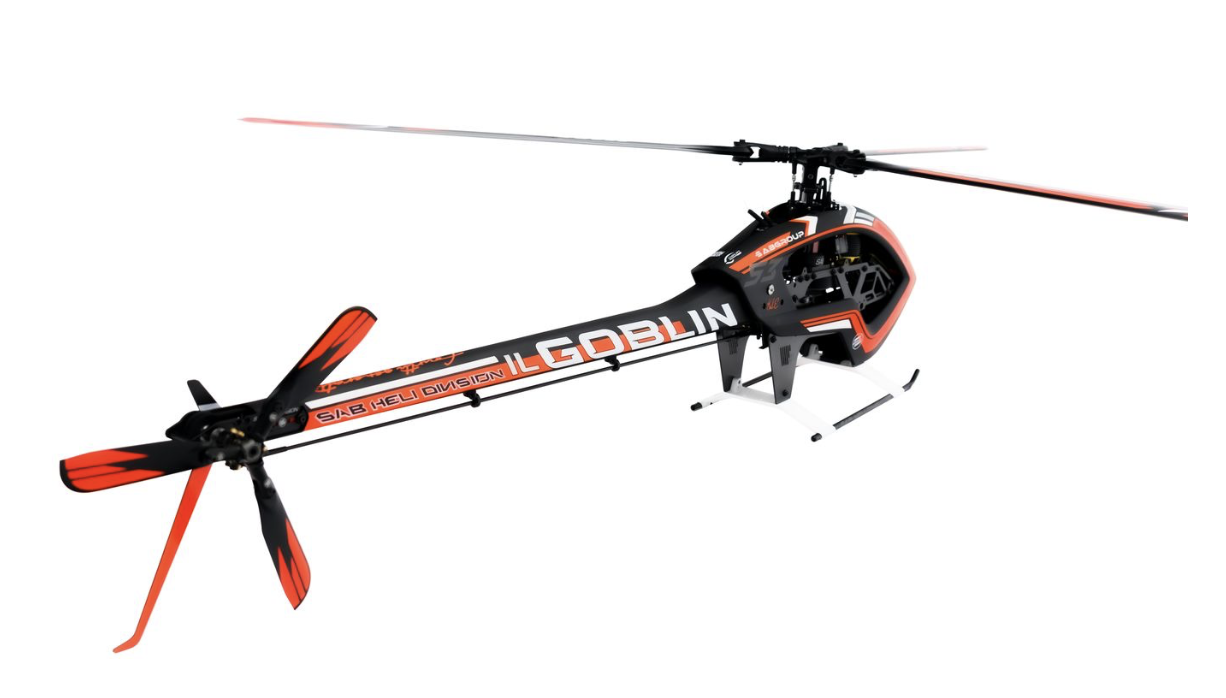

SG762 - ILGoblin KSE
1 329,00 €
Référence de l'article:
SG762
ILGoblin KSE
KIT Includes:
• 21T motor pulley (other pulley sizes available).
• 2 battery trays with integrated connectors.
• S6823-O Orange (682 mm main blades).
• S1103-O Orange (110 mm tail blades).
AIRFRAME weight: 2272 gr (no blades, no battery, no electronics)
Main rotor diameter: 1560 mm (with 682 mm main blades)
Main blade length: 682 mm (3 Blades)
Tail rotor diameter: 296 mm (with 110 mm tail blades)
Tail blade length: 110 mm (3 Blades)
Cyclic Servos: Standard size 40mm
Tail Servo: Standard size 40mm
Main Rotor Ratio: 11.8 to 8.8 (21T included: 10.1:1)

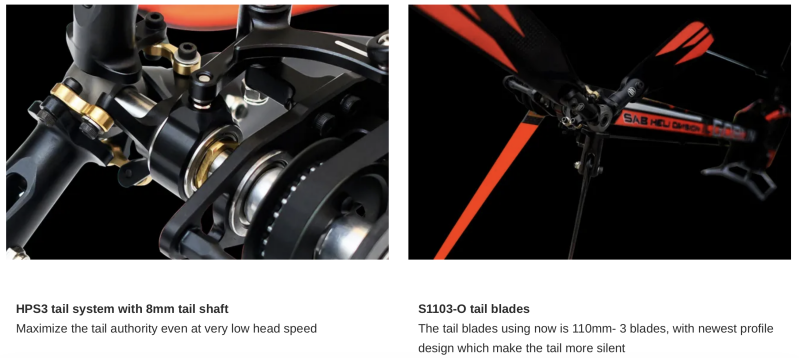

Tail Rotor Ratio: 5.1-4.9:1 (25T included)

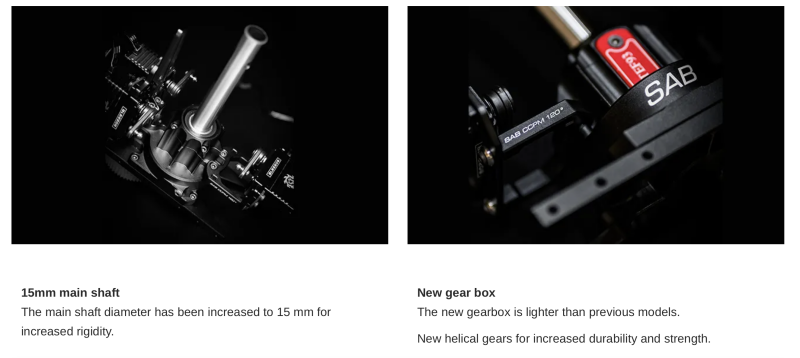

Main shaft: 15 mm, Tail shaft: 8 mm

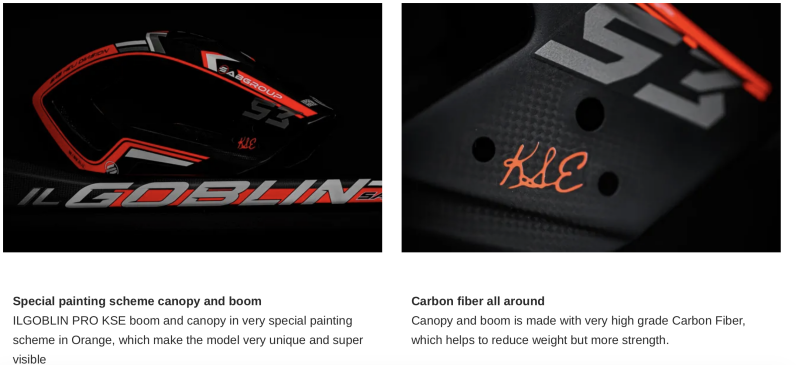

Molded carbon tail boom
Typical motor: 12S, 480/560 KV
Battery room: 50x60x300 mm
