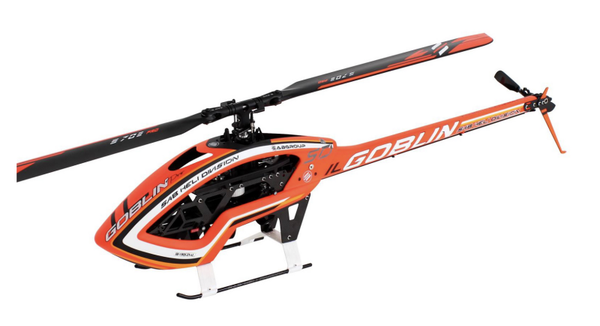

SG760 - ILGoblin PRO
1 195,00 €
Référence de l'article:
SG760

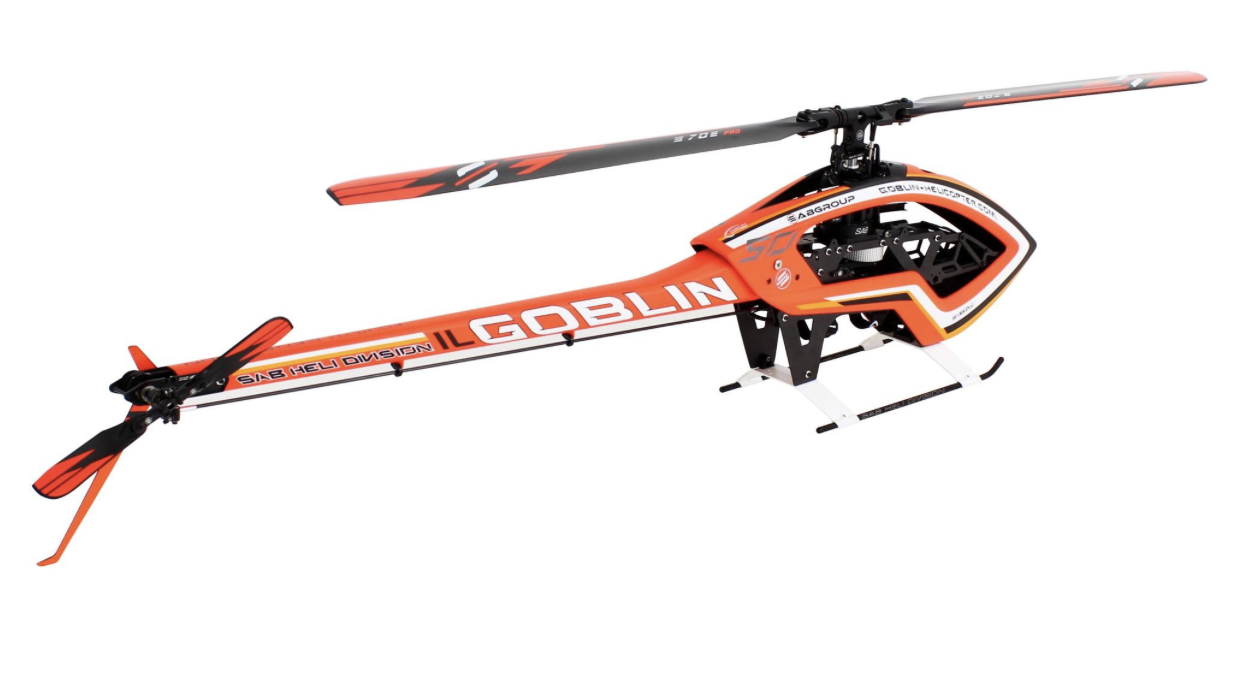

SG760 - ILGoblin PRO

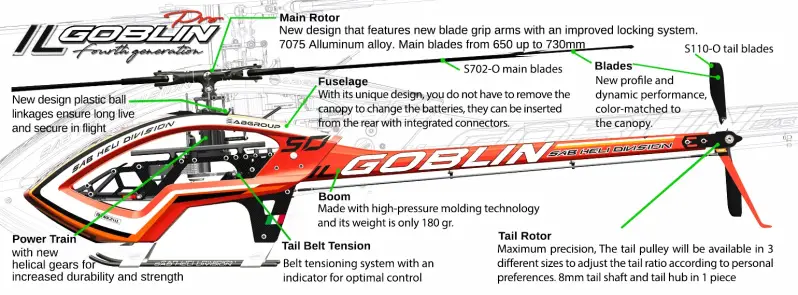

KIT Includes:
• 21T motor pulley (other pulley sizes available).

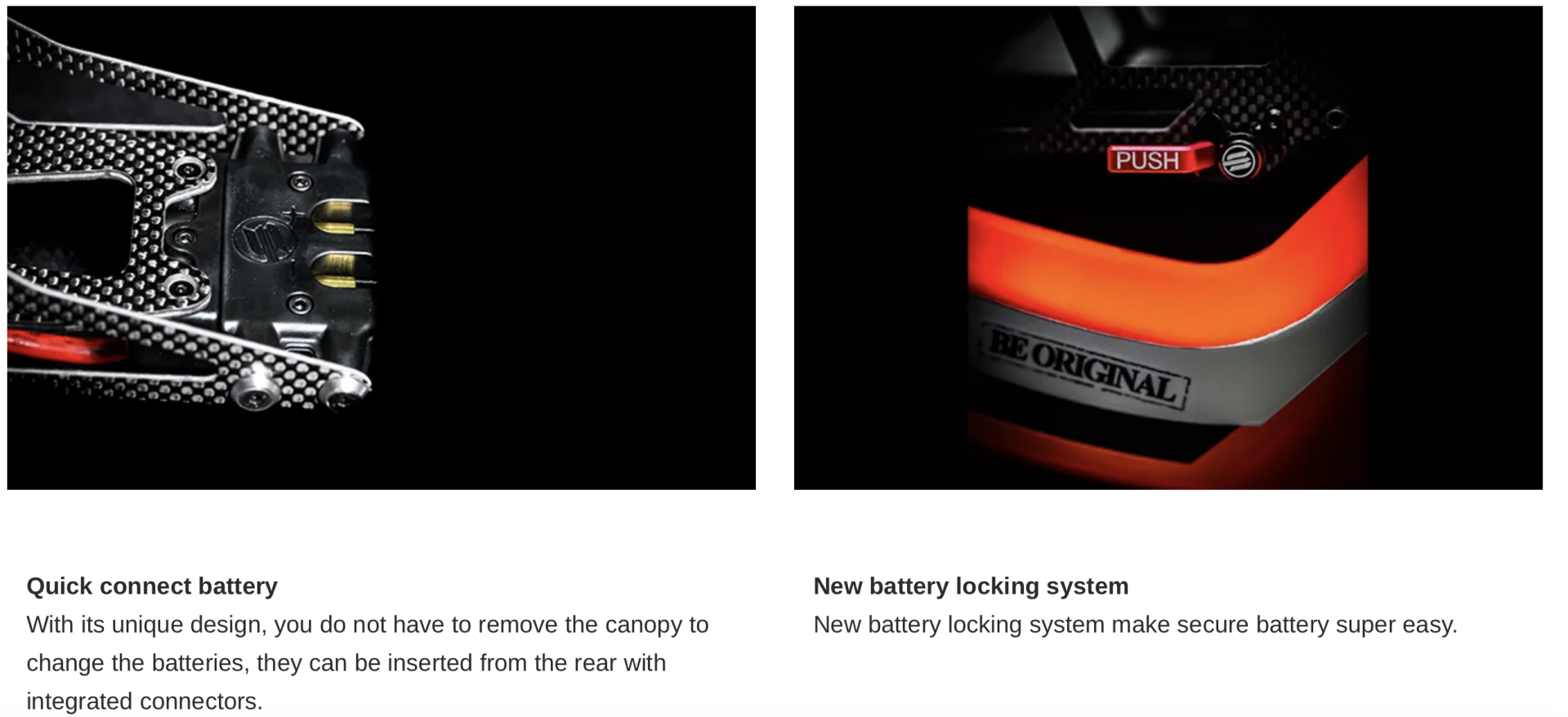

• 2 battery trays with integrated connectors.
• S702 Orange (700 mm main blades).
• S110 Orange (110 mm tail blades).
AIRFRAME weight: 2178 gr (no blades, no battery, no electronics)
Main rotor diameter: 1576 mm (with 700 mm main blades)
Main blade length: 650 to 730mm
Tail rotor diameter: 292 mm (with 110 mm tail blades)
Tail blade length: 105 to 115 mm
Cyclic Servos: Standard size 40mm
Tail Servo: Standard size 40mm
Main Rotor Ratio: 11.8 to 8.8 (21T included: 10.1:1)
Tail Rotor Ratio: 5.1-4.9:1 (26T included: 4.9:1)

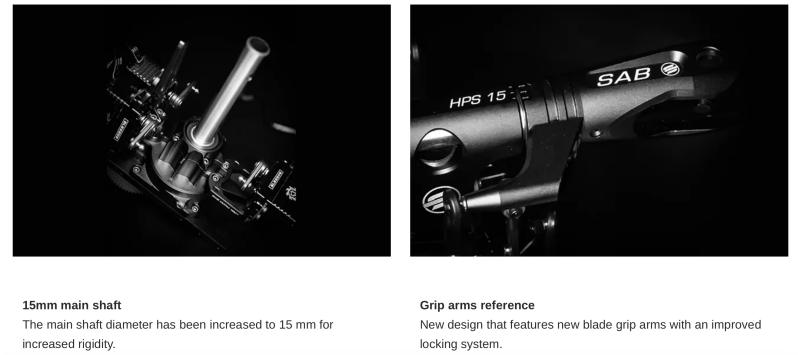

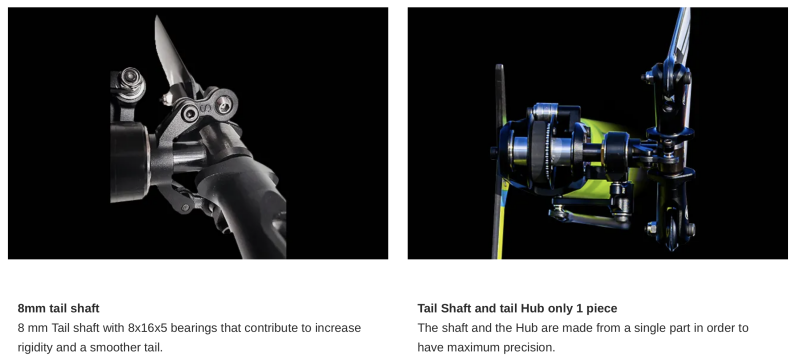

Main shaft: 15 mm, Tail shaft: 8 mm

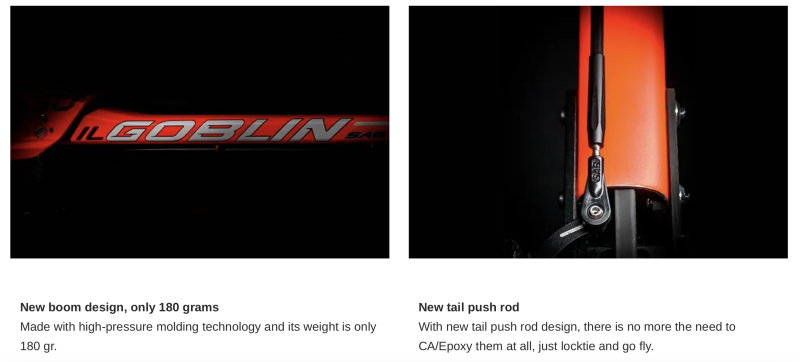

Molded carbon tail boom
Typical motor: 12S, 480/560 KV
Battery room: 50x60x300 mm
