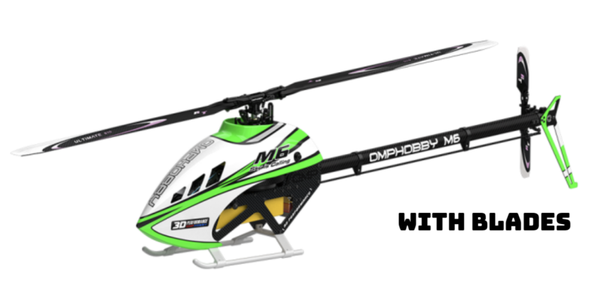

OMPHOBBY M6 RC Helicopter With RotorTech Blades - Green
919,90 €
Référence de l'article:
OSHM607G
OMP M6 Kit - Avec pales RotorTech
Drivetrain Features
- FEA optimized main gear structure reduces bending under load by 25%
- Motor shaft lengths from 15 to 60 mm supported, ⌀ 6 mm
- 11t, 12t, 13t, 14t and 15t pinions available
- 15 mm tall gears guarantee quiet and efficient operation, yet durable power transfer
- 115t main gear for M5 (Ratios 10.455, 9.583, 8.846, 8.214, 7.667)
- 121t main gear for M6 (Ratios 11.000, 10.083, 9.307, 8.643, 8.067)
Tail features
- Downscaled M7 tail rotor with 6 mm tail rotor shaft and 5 mm spindle shaft
- 28mm carbon fiber tail boom
- Single-piece aluminium tail housing
- Best-in-class tail performance, using the proven tail rotor design concept from M7
- Dynamic weights on the tail rotor reduce servo torques in flight
- Tail rotor transmission ratio of 95/20 = 4.75:1
Main rotor features
- Long-throw main rotor design provides exceptional control authority in every situation
- 12 mm main rotor shaft, 8 mm spindle shaft
- Turnbuckles on every linkage
- 5mm ball joints provide exceptional safety and longevity
- Two damper options included, POM and 90° Shore durometer rubber rings
- Keyed, retained and integrated rotor blade washers enhance lead-lag damping, reduce vibrations, and simplify blade changes
General features
- M5 blade size: 550 mm - 580 mm, tail blades 93 mm - 96 mm
- M6 blade size: 600 mm - 610 mm, tail blades 96 mm - 106 mm
- 90%+ shared parts between M5 and M6
- Four stunning canopy options, including two new inverted colors: Cosmic Orange, Solar Yellow, Aurora Green, and Nebula Pink
- Built and tested for the hardest 3D flying styles
- 12mm main rotor shaft, 6mm tail rotor shaft
- 15 mm cyclic servos, 15 mm tail servo for M5
- 20 mm cyclic servos, 20 mm tail servo for M6
- M5 can be crossgraded to 20 mm servos, if desired
- Light airframe weights of 1405 g (M5) and 1505 g (M6)
Frame features
- Battery rails integrated into side frame panel stack
- Low parts count airframe with light-weight aluminum main plate
- High-end chamfered carbon fiber lower frames
- Quick release latches for canopy and battery tray from M7
- Integrated wiring paths throughout the airframe
- Central main plate provides rigidity and ease of maintenance
- Motor carrier rails make setting gear mesh effortless
- Modular servo rack makes servo installation and wiring a breeze
- Auxiliary plate under ESC plate, receiver plate available in the back
- Pre-drilled ESC mounting holes for all major ESC brands
- Triple carbon plate reinforced tail boom mounting guarantees unparalleled rigidity
- Damped flight controller platform known from M7
